Stainless Steel Profiles
Profiles 1

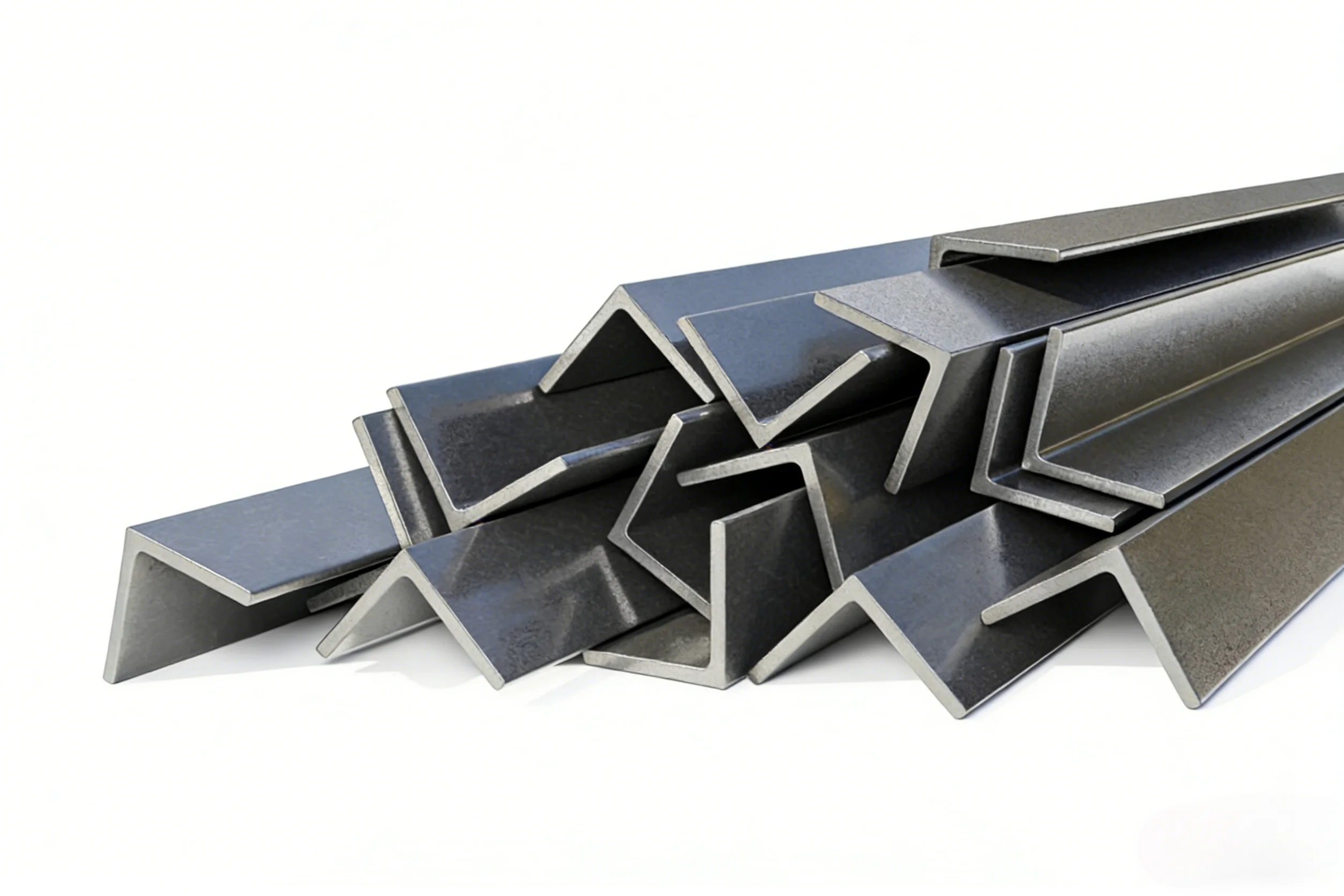

Profiles 2

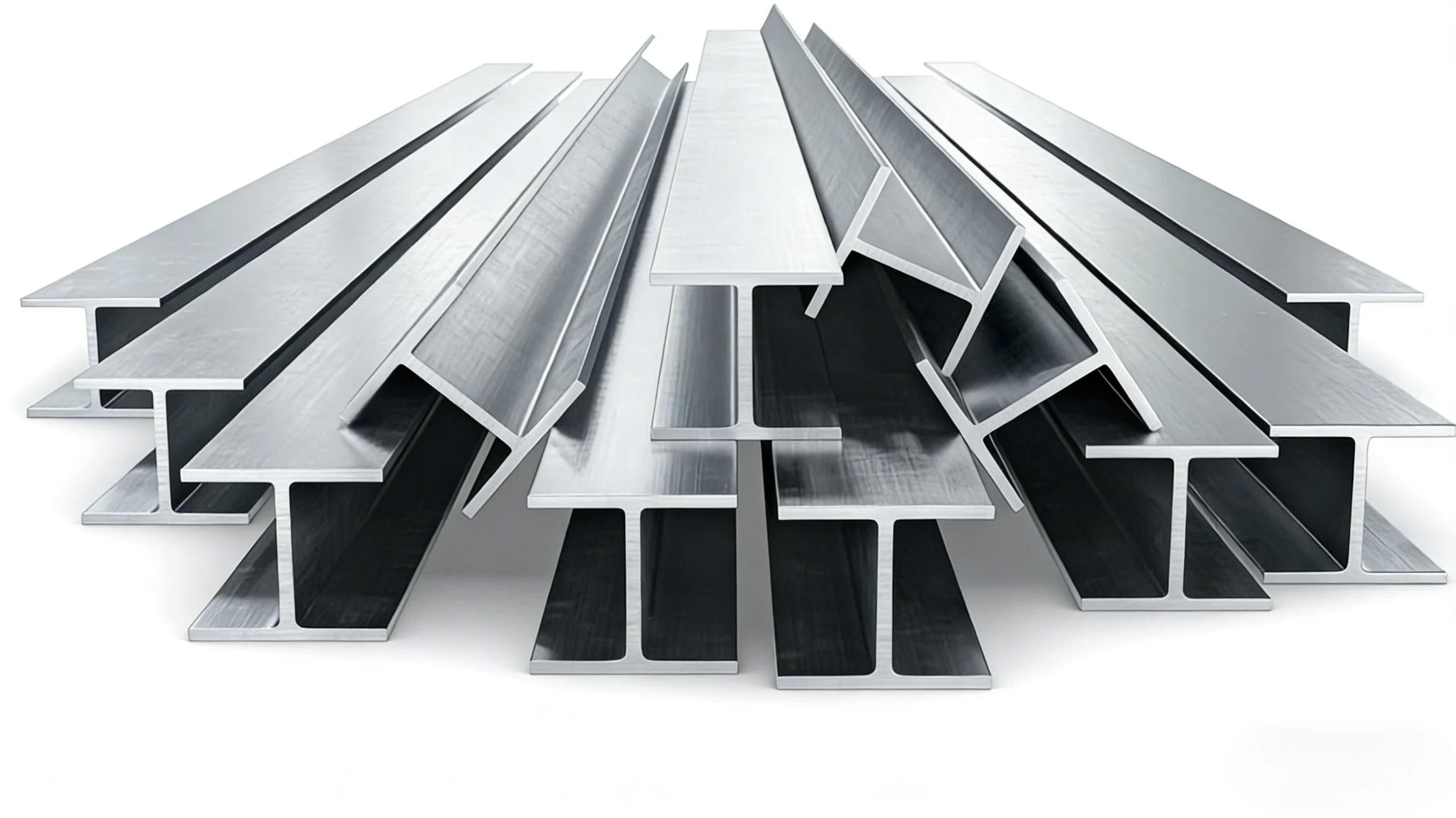

Profiles 3
Stainless Steel

Stainless Steel Profiles

Stainless Steel Profiles encompass a comprehensive range of structural and architectural shapes, including angles, channels, I-beams, T-bars, and flat bars. Their combination of structural integrity, aesthetic appeal, and corrosion resistance makes them the preferred choice for food processing equipment, marine structures, transportation, and decorative architectural applications.

20+ Years Expertise · Fast Delivery · Best Service

Technical Data

Specifications

Production Range

SpecificationDetails
Product TypeEqual Angle, Unequal Angle, Channel (U-beam), I-Beam, T-Bar, Flat Bar, Bulb Flat
Angle – Leg Size20×20 mm – 200×200 mm (equal); 30×20 mm – 200×100 mm (unequal)
Channel – Height30 mm – 400 mm
I-Beam – Height80 mm – 600 mm
Grade304/304L, 316/316L, 321, 310S, 2205, 430
Surface FinishMill Finish (No.1), Brushed (No.4), Polished (HL / Mirror)
StandardASTM A276, EN 10088-3, JIS G4303, GB/T 1220

Industry Use Cases

Applications

Commercial Kitchen & Food Equipment

Commercial Kitchen & Food Equipment

Stainless angles, channels, and flat bars form the structural backbone of commercial refrigerators, cooking lines, prep tables, and hygienic conveyor systems — meeting NSF/ANSI food safety standards and withstanding rigorous daily cleaning cycles.

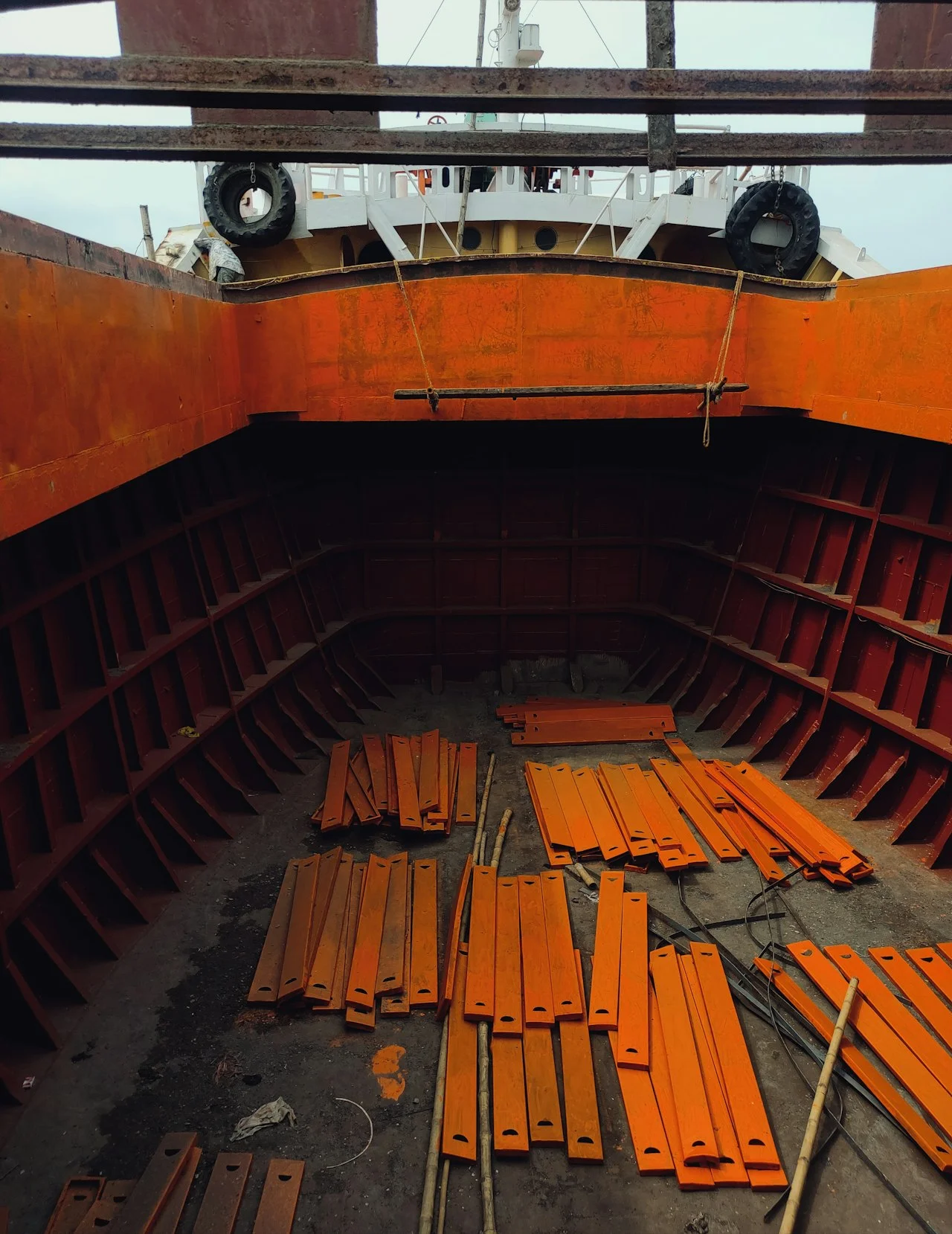

Shipbuilding & Marine Structures

Shipbuilding & Marine Structures

Austenitic and duplex SS profiles resist relentless seawater and salt-atmosphere attack in deck fittings, handrails, gangways, and hull structural members — dramatically reducing maintenance costs over a vessel's full operational service life.

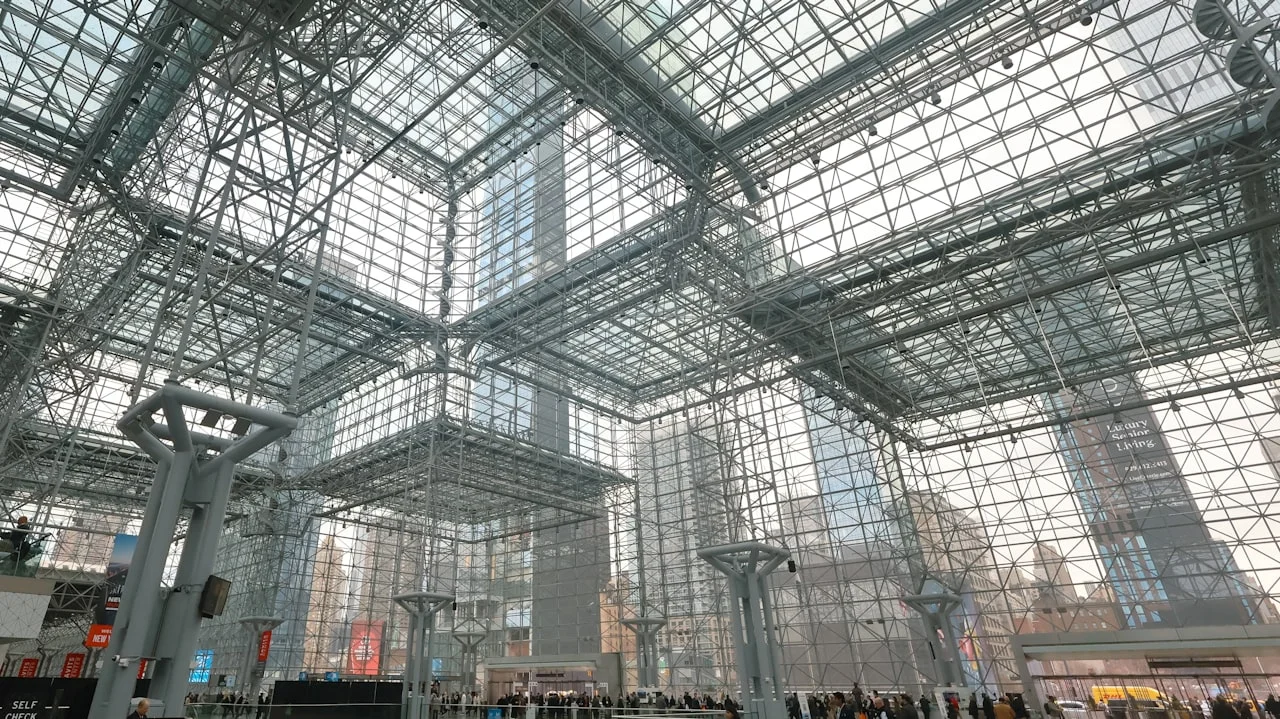

Architectural Structures & Interior Fit-Outs

Architectural Structures & Interior Fit-Outs

Polished and brushed 304/316 angles and channels deliver structural integrity and visual appeal in lobby column cladding, curtain wall supports, escalator structures, and high-traffic public space interiors — requiring zero corrosion for decades.
