Carbon Steel

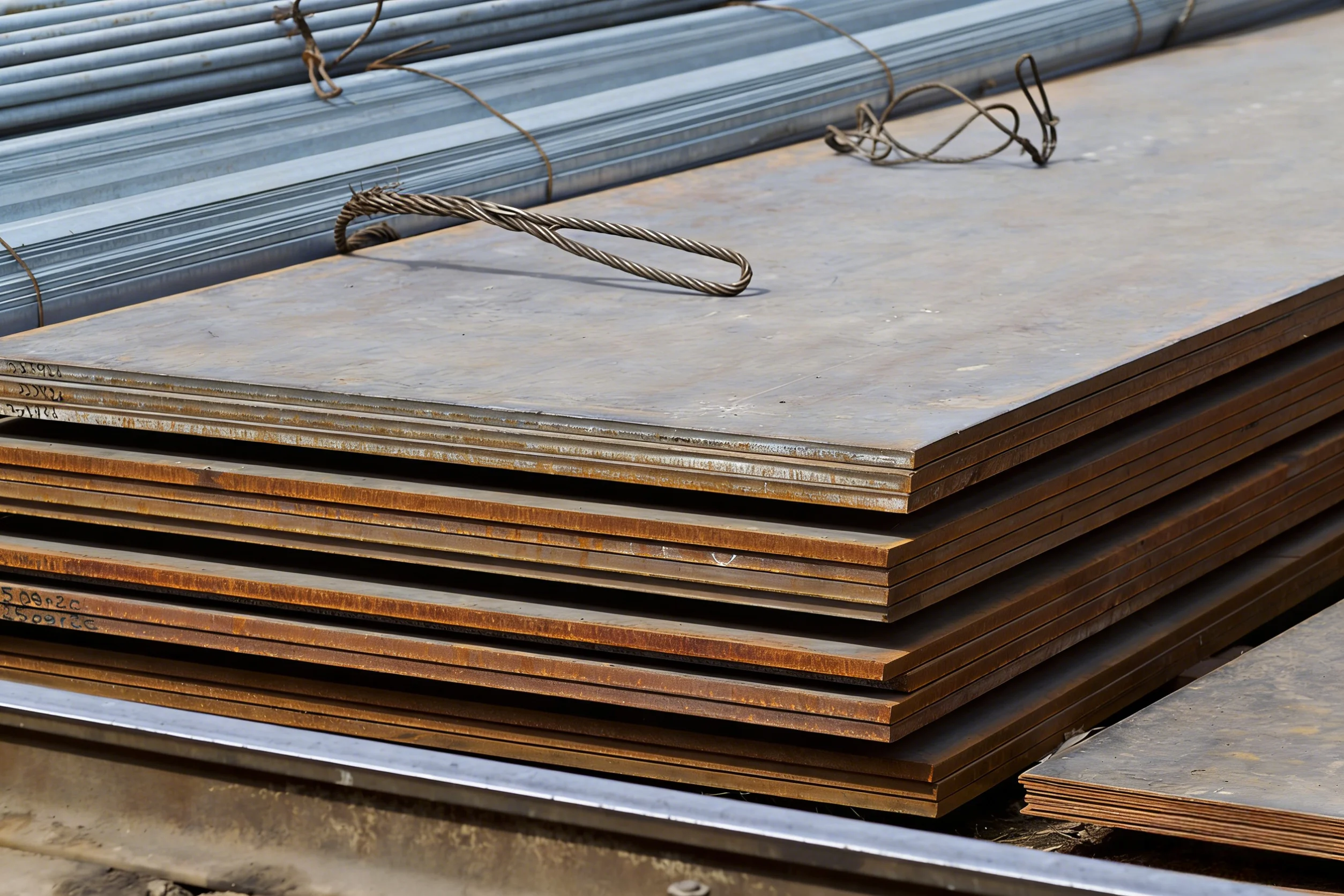

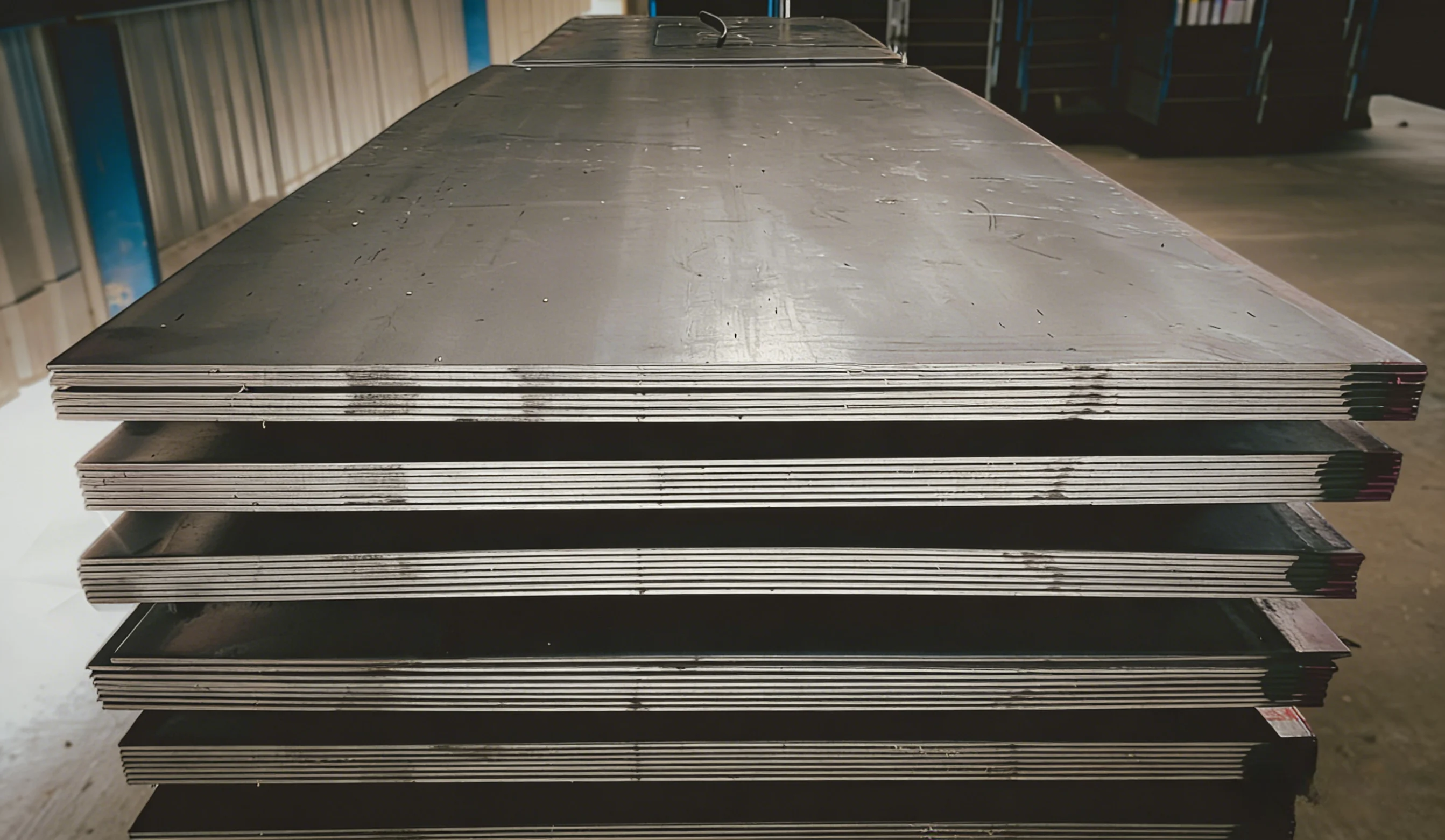

Carbon Steel Sheets & Plates

Carbon Steel Sheets & Plates are durable, high-performance materials known for their strength and reliability in demanding industrial and structural applications, including construction, heavy machinery, shipbuilding, pressure vessels, and infrastructure development. They also cover carbon steel checker plates (durbar plate, diamond plate), which feature a raised patterned surface for excellent slip resistance and are commonly used in flooring, stair treads, and industrial walkways. Their cost-effectiveness, durability, and versatility make them a preferred choice in global markets, with special variants such as wear-resistant and bulletproof steel for high-demand scenarios.

Request a Quote All Products

20+ Years Expertise · Fast Delivery · Best Service

Technical Data

Specifications

Production Range

Specification	Details
Thickness	Standard Plates: 0.3 mm – 200 mm (Cold-Rolled: 0.3–6.0 mm; Hot-Rolled: 1.5–200 mm), Structural/Pressure Vessel Plates: 6–100 mm (special grades: 60–100 mm), Checker Plates: 2.0–12.70 mm, Wear-Resistant/Bulletproof Steel: 3.0–50 mm
Width	600–3000 mm
Length	1000–12000 mm
Alloy & Grade	General/Building Structure: JIS G3101 SS400/SS490/SS540, ASTM A36, EN 10025 S235/S275/S355/S420, JIS SN400/SN490,Welded Structure: JIS G3106 SM400/SM490/SM520,Bridge Structure: ASTM A709,Offshore Structure: EN S355G10/S355MLO/S355NL,Pressure Vessels: JIS G3103/G3115, ASTM A285/A515/A516/A537,Mechanical Structure: JIS G4051 S45C/S50C/S55C, JIS G4105 SCM440,Checker Plates: S235JR, ASTM A36, SS400 (300N/mm² & 400N/mm² grades),Shipbuilding: Normal Strength (A/B/D/E), High Strength (AH32-EH32/AH36-EH36),Special Grades: Wear-resistant (NM360/NM400/NM450/NM500, AR400/AR500), Bulletproof (BP500/BP600/BP700)
Production Standard	GB/T 700, GB/T 3274, GB/T 11253, ASTM A36/A283/A1011/A515/A516/A537/A709, EN 10025, DIN 17100, JIS G3101/G3103/G3106/G3115/G4051/G4105

Industry Use Cases

Applications

Shipbuilding & Naval Construction

Classification-certified marine-grade plates (A/B/D/E; AH32–EH36 high-strength) are the fundamental material for ship hulls, bulkheads, decks, and offshore jacket structures — built to Lloyd's, DNV, ABS, and other class society approvals.

Structural Steel & Heavy Construction

S235/S275/S355 hot-rolled plates form the load-bearing core of industrial buildings, bridges, and heavy infrastructure — offering the ideal balance of weldability, yield strength, and cost efficiency for large-scale steel fabrication projects.

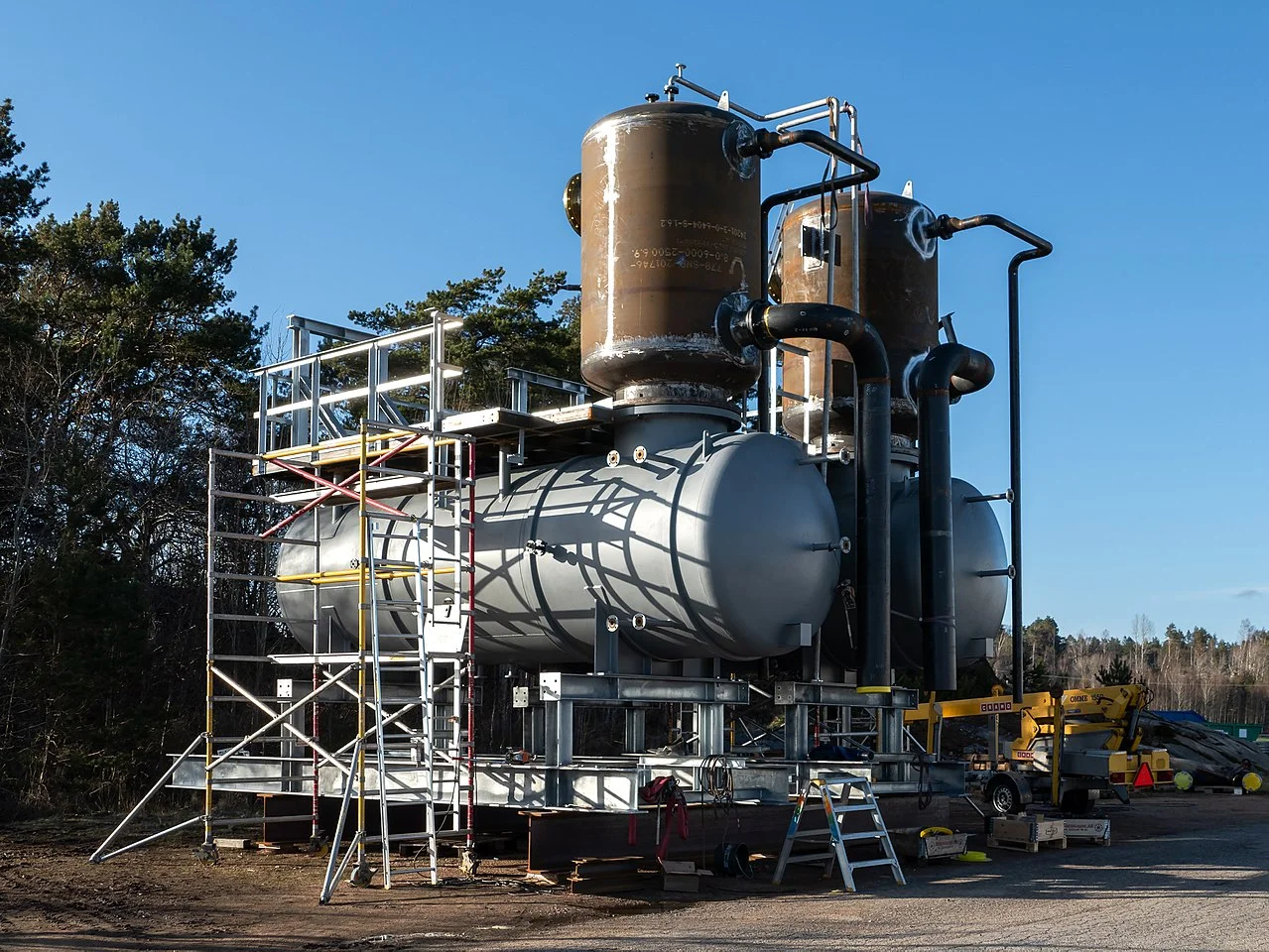

Pressure Vessel & Boiler Fabrication

ASTM A516 Gr.60/70, A537 Cl.1/2, and JIS G3115 SPV grades are purpose-designed for pressure vessel, boiler drum, and storage tank construction — with guaranteed impact toughness at low temperatures and proven weldability under code requirements.

Carbon Steel Sheets & Plates

Specifications

Production Range

Applications

Shipbuilding & Naval Construction

Structural Steel & Heavy Construction

Pressure Vessel & Boiler Fabrication
